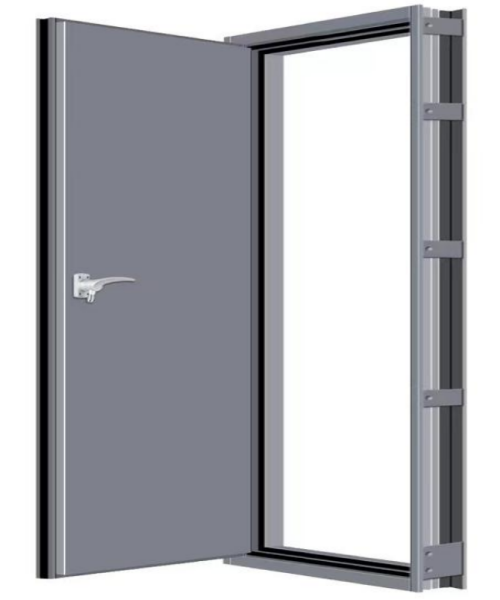

Steel soundproof door is a kind of noise reduction measure to prevent the external noise from being transmitted into the building and the high noise inside the building from being transmitted outward, through the specially designed and produced and installed architectural sound insulation components. This steel door is composed of two panels with mesh steel ribs in the middle, and the internal filling material is mostly glass wool. The panel is usually made of cold-rolled steel plate and stainless steel plate. Acoustic door selection of high-precision cold-rolled steel plate, the door cavity filled with sound insulation material weight control between 50-100kg/m3. Doors are sealed with rubber strips all around to ensure that the sound insulation index STC ≥ 40dB.
PRODUCTS
Tel:+8613027778101
E-mail:bonnie@yh-acoustics.com
Product details description

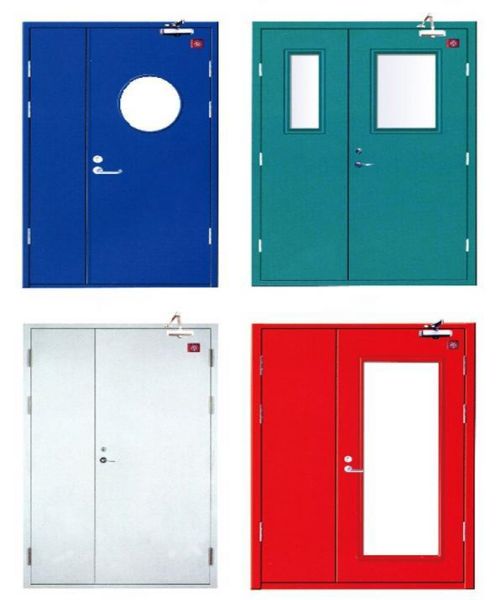

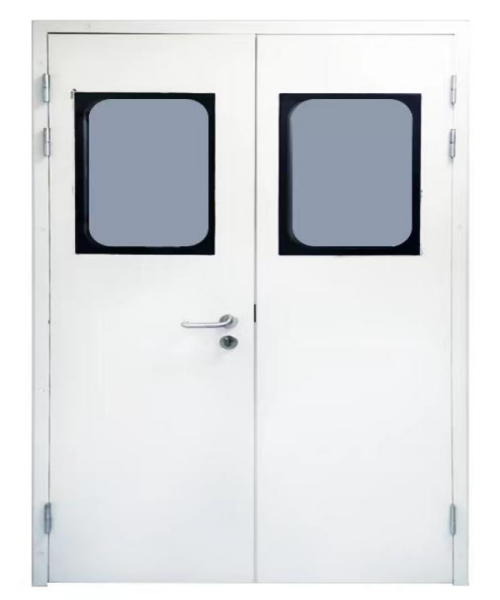

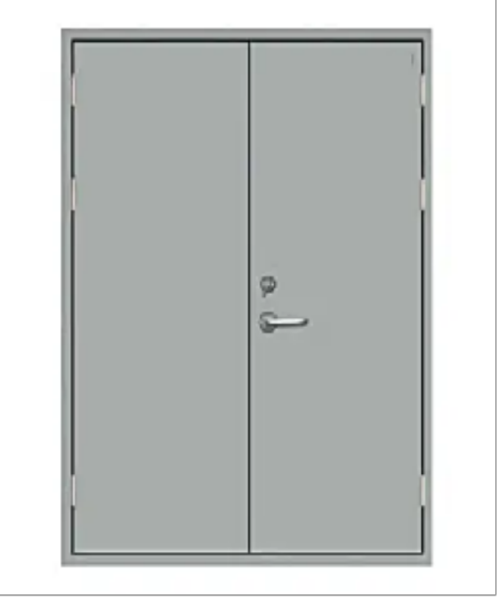

Steel fireproof soundproof door is a kind of steel door, composed of door and door frame, using high quality cold rolled steel plate, cold processing processing molding, the door is filled with non-combustible, fire-resistant, heat-insulating, sound-insulating materials according to the fire-resistance level, using advanced technology, unique design and special production technology, single, double cut-out practice, with fireproofing, soundproofing, escape high-quality performance, the use of performance and stability, crafted from steel doors. YH-acoustics™ produces 3 types of soundproof doors: single door, double door and sliding door.
Acoustics steel door features
•Water-resistant.
•Airtight.
•Guaranteed performance.
•Full range of door hardware to suit all types of doors.
•Sound transmission loss.
•Sound insulating steel door.
•High acoustic insulation.
Typical applications of soundproof door
•Plant & equipment
•Clubs & entertainment venues
•Studios
•Industrial workplaces
Specifications
Metal Acoustic Door Specifications
•Thickness: Various
•Frame Material: Steel
•Leaf Material: Steel
•Frame Seal: Proprietary double acoustic seal system
•Threshold Seal: 12mm threshold plate and seal system or drop seal
•Door Finish: Full finish types available, primed, powder •coated, painted etc
•Accessory’s: Windows, kickplates, closers, panic bars etc
•Lock and Lever: Proprietary type (alternates available, please check)
