Product details description

Introduction：

Acoustic steel panels (modular soundproofing panels) are prefabricated and can be cut to suit your individual project’s exact application size requirements. Their modular tongue and groove style makes them easy to install and cover large areas in a short time .

The sound insulation panels are lightweight, easily handled, and can be used to create complete acoustic enclosures or rooms, mobile screens, dividing walls, and even treating walls for reverberation.

Features:

1、According to acoustic sound absorption principle design and production;

2、With superior sound absorption, sound insulation effect, the average sound absorption coefficient of 0.90 ~ 0.98, effective control and harmonization of indoor reverberation, improve sound quality, reduce noise value;

3、The thickness of 50mm to 250mm, etc.; the thicker the board, the better the low-frequency sound-absorbing effect;

4、Fire-proof, rain-proof, moisture-proof, durable, beautiful and economical, advanced structure, easy to update, suitable for indoor and outdoor;

5、Size, color, thickness, assembly method can be customized;

Material:

Metal surface optional: stainless steel, galvanized sheet, aluminum-zinc plated sheet, anti-rust aluminum LF21, etc.,.

Core: rock wool, mineral wool, glass wool, magnesium glass, magnesium sulfide, polyurethane foam, paper honeycomb, etc.

Surface: fluorocarbon coating, PVDF/SMP coating, HDP coating, polyester PE coating, etc.

Tip: The panel can be customized according to the actual needs;

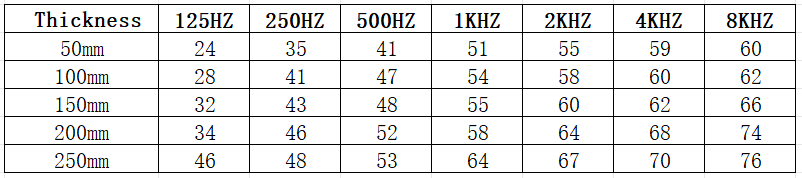

Noise reduction test
